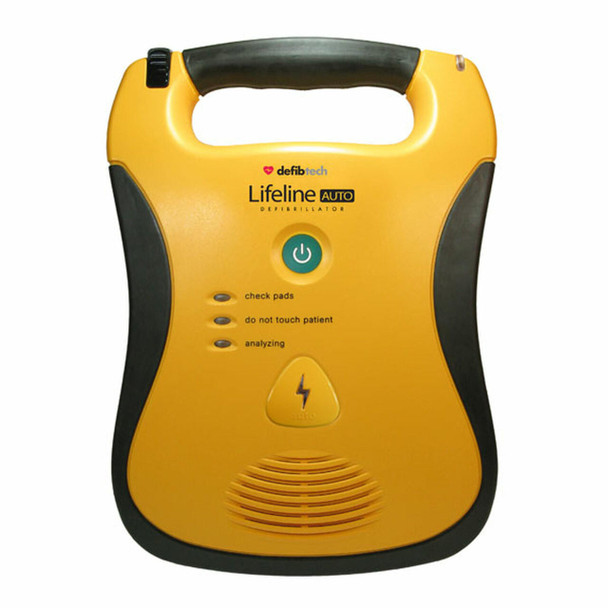

Defibtech Lifeline AUTO Fully Automatic Defibrillator - with 7 Year Battery

The Latest Evolution In The Award Winning Lifeline Defibrillator Series.

The Lifeline AUTO has all the same features as the Lifeline AED; with the difference being that the shock is delivered automatically without the need to press the shock button.?á This makes the Lifeline AUTO even easier to use than the Lifeline AED and takes away the fear of the rescuer to use the defibrillator. If you feel uncomforatble about having the responsibility of delivering the shock or feel that your staff may feel this way then the Lifeline AUTO is ideal for you.

Lifeline AUTO automatically detects when defibrillation is required, ensuring treatment is only delivered when needed.?á The Lifeline AUTO is able to identify and treat Ventricular Fibrillation, Ventricular Tachycardia and Supraventricular Tachycardia.

Who should use the Lifeline AUTO?

If you are a non-medical organisation that is looking for a defibrillator that provides you with all the simplicity of use of the Lifeline AED but also removes the responsibility of having to press the button to deliver the shock then the Lifeline AUTO is the defibrillator for you. At a slightly higher price than the Lifeline AED, the Lifeline AUTO still offers excellent value for money.

Why choose the Lifeline AUTO Fully Automatic Defibrillator?

• Industry leading 7-year battery
• Clear & concise voice instructions
• Portable & lightweight 1.9kg
• Hardwearing tested to military standards
• IP54 ingress protection rating high water and dust protection
• Low maintenance daily self tests and a bright status indicator light
• Future proof Free software upgrades when resuscitation guidelines change (most other AED manufacturers charge for this service)
• New - Industry leading 8-year warranty
• Training conversion kit available allows the AED to be temporarily turned into a training unit to run through training simulations.

TECHNICAL SPECIFICATION:

DEFIBRILLATOR

TYPE:
Fully Automatic external defibrillator

MODEL:
DDU-120SERIES

WAVE FORM:
Biphasic Truncated Exponential
(Impedance compensated)

ENERGY:
Adult: 150 Joules
Pediatric: 50 Joules
(Nominal in to 50 Ohm load)

CHARGE TIME*
DBP-2800: Less than 6 seconds
DBP-1400: Less than 9 seconds

VOICE PROMPTS:
Extensive voice prompts guide user through operation of the unit.

CONTROLS:
Lighted On/Off button

INDICATORS:

• check pads
• do not touch patient
• analyzing
• armed-for-shock
• AED status LED.

PATIENT ANALYSIS SYSTEM

PATIENT ANALYSIS:
Automatically evaluates patient impedance for proper pad contact.
Monitors signal quality and analyzes patient ECG for shockable/non-shockable rhythms.

SENSITIVITY/SPECIFICITY:
Meets AAMI-DF-39 specifications and AHA recommendations.

BATTERY PACK:

MODEL DBP-1400**

POWER: 15V, 1400 mAh

CAPACITY: 125 shocks or 8 hours continuous operation.

STANDBY LIFE: 5 Years.

TYPE
Lithium/Manganese Dioxide Disposable, recyclable, non-rechargeable

LOW BATTERY INDICATORS
Visible
Audible

SELF TESTS:

AUTOMATIC
Automatic daily, weekly and monthly circuitry tests.

BATTERY INSERTION
System integrity test on battery insertion.

PAD PRESENCE
Pads preconnected tested daily.

USER-INITIATED
Unit and battery pack system test may also be initiated by the user.

STATUS INDICATION
Visual and audible indication of unit status.

DEFIBRILLATION/MONITORING PADS:

MODEL
AdultÔÇôDDP-100
Child/InfantÔÇôDDP-200P

TYPE
Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector.

SURFACE AREA
103 cm 2 (nominal,eachpad)
50 cm 2 (nominal, each pad).

PAD PLACEMENT
Adult Anterior/Anterior
Child/Infant Anterior/Posterior.

CABLE LENGTH (typical)
48 in (122cm).

EVENT DOCUMENTATION:

INTERNAL EVENT RECORD
Critical ECG segments and rescue event parameters are recorded and can be downloaded to are movable data card.

PC-BASED EVENT REVIEW
ECG with event tag display, and audio playback when available.

REMOVABLE STORAGE(optional)
Up to 12 hours of ECG and event data storage (no audio option) or up to 2 hours of audio, ECG and event storage (audio option) on are movable datacard. Actual length of storage is dependent on card
capacity.

Actual length of storage is dependent on card capacity

ENVIRONMENTAL:

TEMPERATURE
Operating:
0 to 50C (32 to 122 F)
Standby (with battery installed):
0 to 50C (32 to 122F)

RELATIVE HUMIDITY
Operating/Standby: 5%-95%
(non-condensing)

ALTITUDE
-500 to 15,000 ft (-150 to 4500m) per MIL-STD -810F 500.4 Procedure II

VIBRATION
Ground (MIL-STD-810F 514.5 Category 20).
Helicopter(RTCA/DO-160D, Section 8.8.2, Cat R, Zone 2, Curve G).
Jet Aircraft (RTCA/DO-160D, Section 8, Cat H, Zone 2, Curves B&R).

SHOCK/DROP ABUSE TOLERANCE
MIL-STD-810F 516.5 Procedure IV
(1 meter, anyedge, corner, or surface, instand by mode)

SEALING/WATER RESISTANCE
IEC 60529 class IP54; Splash Proof, Dust Protected (Battery Pack installed).

ESD
EN 61000-4-2:2001, (open air up to 8kV or direct contact up to 6kV)

EMC (Emission)
EN 60601-1-2:1998 +A1:2002, limits. EN 55011:1998 +A1:1999 +A2:2002 Group 1 Level B, method.

EMC (Immunity)
EN 60601-2-4:2003, limits
EN 61000-4-3:2002
Level 3 (10V/m), method.
